Product Description

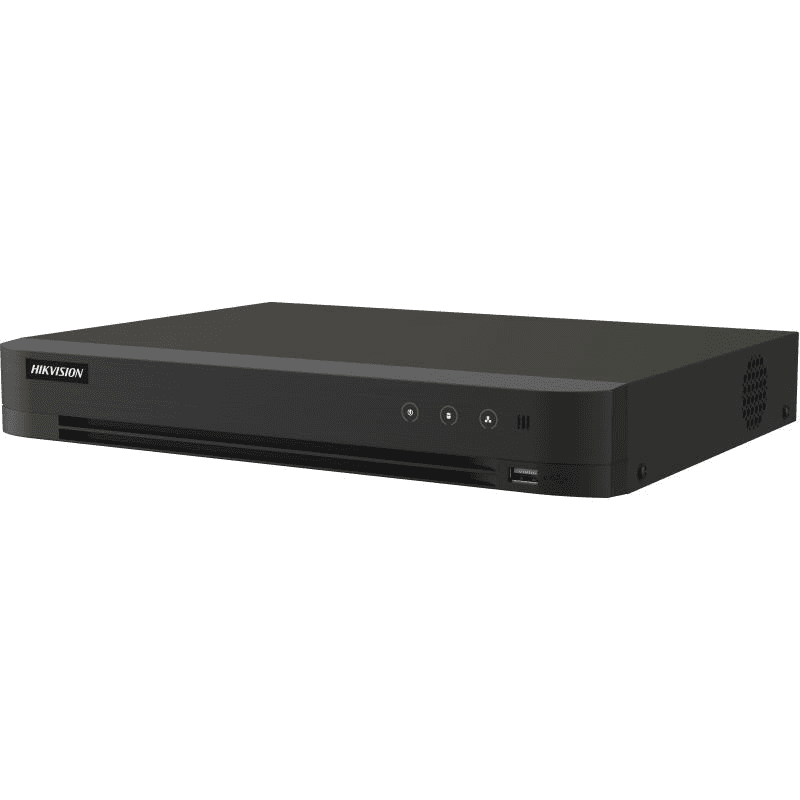

The Hikvision 16-ch 5MP 1U H.265 AcuSense DVR (iDS-7216HQHI-M1/XT) has 16 channels and records to one hard drive. As a hybrid recorder, it can also take up to 24 IP cameras. A DVR is a digital video recorder. 1U means a slim, single-unit-height case.
What the specs mean
- Five input types: HDTVI, AHD, CVI, CVBS and IP. Existing analogue cameras and newer IP cameras can share one recorder.
- Recording up to 3K/5MP Lite at 12fps: a high-resolution picture at 12 frames per second.
- Up to 24 IP camera inputs, each up to 6MP: room to grow the system. Decoding covers up to 24 channels of 1080p at 30fps.
- H.265 Pro+ compression: smaller files and lower storage and bandwidth use.
- Outputs: HDMI up to 4K, VGA up to Full HD.
AcuSense analytics
AcuSense uses deep learning to classify humans and vehicles, so irrelevant motion triggers fewer false alarms. You get 4-channel facial recognition or 8-channel perimeter protection. All channels support motion detection and HDTVI two-way audio, and 16-channel AcuSearch is included.
What else you need
- One SATA hard drive, up to 12TB. There is a single bay. More capacity comes from NAS (network attached storage) or iSCSI network storage.
- Cameras, cabling and a monitor with HDMI or VGA input.
Suited to commercial buildings, warehouses, offices and retail sites that run mixed camera types.
Specifications
- Model
- iDS-7216HQHI-M1/XT
- Series
- M-Series
- Channels
- 16-CH
- Max Resolution
- 5MP
- Max Analog Resolution
- 5MP
- IP Channels (Hybrid)
- Up to 24
- Video Compression
- H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
- Recording Resolution
- 5MP Lite, 3K Lite, 4MP Lite, 1080p, 720p
- Frame Rate
- 12 fps @ 5MP Lite / 15 fps @ 4MP Lite
- Decoding Capability
- Up to 24 × 1080p @ 30fps
- HDMI/VGA Independent
- Sync
- BNC Output
- Yes
- Max HDD per Bay
- 12TB
- Max Total Storage
- 12TB
- eSATA Port
- No
- AcuSense
- Yes
- DeepinMind / AI
- No
- Human & Vehicle Detection
- Yes
- Face Detection
- Yes
- Face Recognition
- Yes
- Perimeter Protection
- Yes
- Line Crossing
- Yes
- Intrusion Detection
- Yes
- False Alarm Filtering
- Yes
- People Counting
- No
Technical Specifications
Frequently Asked Questions
Can I use analogue and IP cameras together on this DVR?
Yes. It accepts HDTVI, AHD, CVI, CVBS and IP signals, and supports up to 24 IP camera inputs, each up to 6MP.
How much storage can it hold?
It has one SATA bay for a hard drive up to 12TB. NAS and iSCSI network storage add further capacity.
Can I run facial recognition and perimeter protection together?
The recorder supports 4-channel facial recognition or 8-channel perimeter protection, so plan around one or the other.
What monitor connections does it have?
HDMI output supports up to 4K resolution. VGA output supports Full HD.
