Product Description

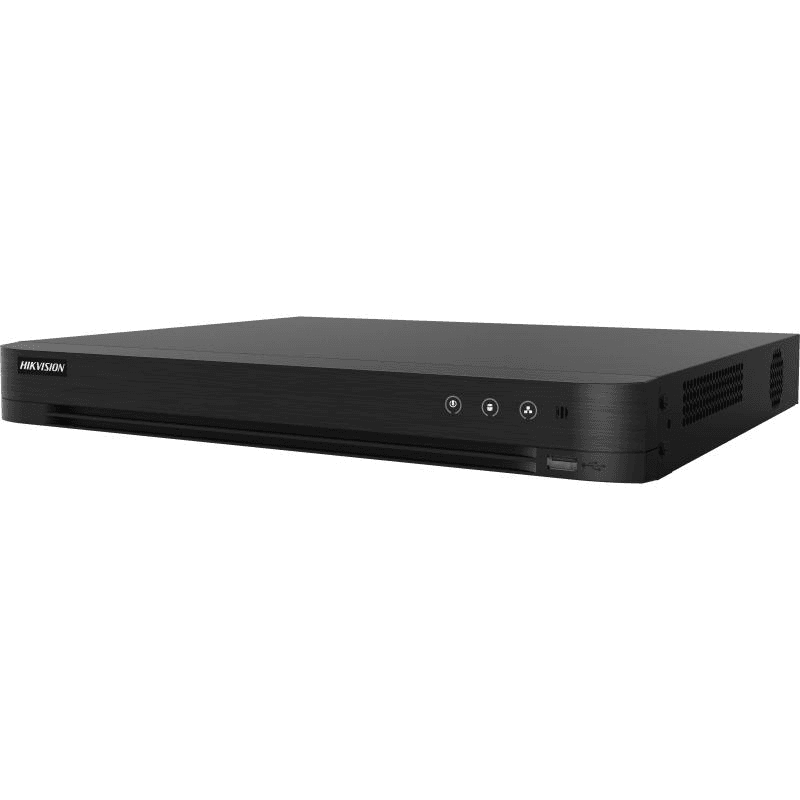

The Hikvision 16-ch 1080p 1U H.265 DVR (DS-7216HGHI-M1) is a digital video recorder for mixed analogue and IP camera systems. It takes 16 analogue channels and can add IP cameras up to 18 channels, at up to 5 MP each.
What it records from
- Analogue inputs: HDTVI, AHD, CVI and CVBS, so existing coaxial cabling can stay in place.
- Cable run: up to 1200 m for a 720p HDTVI signal.
- Encoding: up to 1080p Lite at 15 fps.
- Audio: over the coaxial cable from compatible cameras, plus RCA input and output.
Storage and compression
It uses H.265 Pro+, H.265 Pro or H.265 compression. These reduce file size, so a given drive holds more footage. There is one SATA bay, up to 10TB. You need to fit a drive for recording.
Viewing and alerts
- HDMI and VGA outputs work at the same time, up to 1920 × 1080.
- A 10/100 Mbps Ethernet port handles remote viewing, playback and setup through Hik-Connect and compatible software.
- Motion Detection 2.0 sorts human and vehicle targets from other movement such as shadows, rain or moving vegetation. This cuts false alarms.
The 1U case is one rack unit high.
Specifications
- Brand
- Hikvision
- Model
- DS-7216HGHI-M1
- Series
- M-Series
- Channels
- 16-CH
- Max Resolution
- 1080p Lite @ 15fps
- Max Analog Resolution
- 5MP
- IP Channels (Hybrid)
- Up to 18
- Video Compression
- H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
- Recording Resolution
- 1080p Lite, 720p, WD1, VGA, CIF
- Frame Rate
- 15 fps @ 1080p Lite
- Decoding Capability
- 16 Channels
- HDMI/VGA Independent
- Sync
- Max Output Resolution
- 1920 × 1080
- BNC Output
- No
- Max Total Storage
- 10 TB
- eSATA Port
- No
- AcuSense
- No
- DeepinMind / AI
- No
- Human & Vehicle Detection
- Yes
- Face Detection
- No
- Face Recognition
- No
- Perimeter Protection
- No
- Line Crossing
- No
- Intrusion Detection
- No
- False Alarm Filtering
- Yes
Technical Specifications
Frequently Asked Questions
How many cameras can the DS-7216HGHI-M1 take?
It supports 16 analogue channels and up to 18 IP channels, with IP cameras up to 5 MP.
How large a hard drive can I fit?
It has one SATA bay and supports a drive of up to 10TB.
Which analogue camera types does it accept?
It accepts HDTVI, AHD, CVI and CVBS video, as well as IP cameras.
Can I connect two monitors?
HDMI and VGA outputs can run at the same time, up to 1920 × 1080.
