Product Description

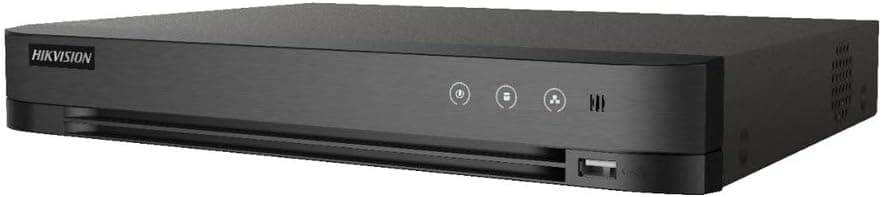

The HIKVISION DS-7208HGHI-M1 is an 8-channel 1U DVR (digital video recorder) that takes both analogue and IP cameras, so it suits a mixed-camera upgrade as much as a fresh install.
What the specs mean for you
- 8 analogue channels (HDTVI/AHD/CVI/CVBS) plus up to 10 IP camera channels in hybrid mode, IP resolution up to 5 MP — useful if you're adding newer IP cameras to an existing coax run rather than rewiring.
- H.265 Pro+/H.265 Pro/H.265 compression — cuts file size against older H.264 kit, so the same hard drive holds more footage.
- Encoding up to 1080p lite at 15 fps — set expectations on smoothness before recording motion-heavy scenes.
- Max 1200 m for a 720p HDTVI signal — relevant if cameras sit a long cable run from the recorder.
- Motion Detection 2.0 uses deep learning to tell human and vehicle movement apart from shadows, weather or foliage, cutting nuisance alerts.
- Audio comes via RCA input/output or over coaxial cable from a compatible camera — no separate audio cable needed for the latter.
- Output: HDMI and VGA together, up to 1920×1080.
- Network: 10/100 Mbps Ethernet for Hik-Connect remote viewing and playback.
- Storage: one SATA drive, up to 4 TB — plan drive size against channel count and recording frame rate.
Suits residential, retail and small commercial hybrid CCTV setups.
Specifications
- Model
- DS-7208HGHI-M1
- Series
- M-Series
- IP Channels (Hybrid)
- Up to 10
- Video Compression
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Frame Rate
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- HDMI Output
- 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDMI/VGA Independent
- Sync
- BNC Output
- No
- Max Total Storage
- 4 TB
- eSATA Port
- No
- AcuSense
- No
- DeepinMind / AI
- No
- Human & Vehicle Detection
- Yes
- Face Detection
- No
- Face Recognition
- No
- Perimeter Protection
- No
- Line Crossing
- No
- Intrusion Detection
- No
- False Alarm Filtering
- Yes
- People Counting
- No
- Audio Input
- 1 RCA
- Audio Output
- 1 RCA
- Two-Way Audio
- Yes
- RS-485
- No
- Power Supply
- 12 VDC, 1.5 A
Technical Specifications
Frequently Asked Questions
How many cameras can the DS-7208HGHI-M1 support?
It has 8 analogue channels (HDTVI/AHD/CVI/CVBS) and, in hybrid mode, can also take up to 10 IP camera channels at resolutions up to 5 MP.
What is the maximum hard drive size?
It takes a single SATA hard drive up to 4TB capacity.
Does it support audio?
Yes, via RCA input and output, and also over coaxial cable from compatible cameras.
What video outputs does it have?
HDMI and VGA, with simultaneous output up to 1920 x 1080.
