Product Description

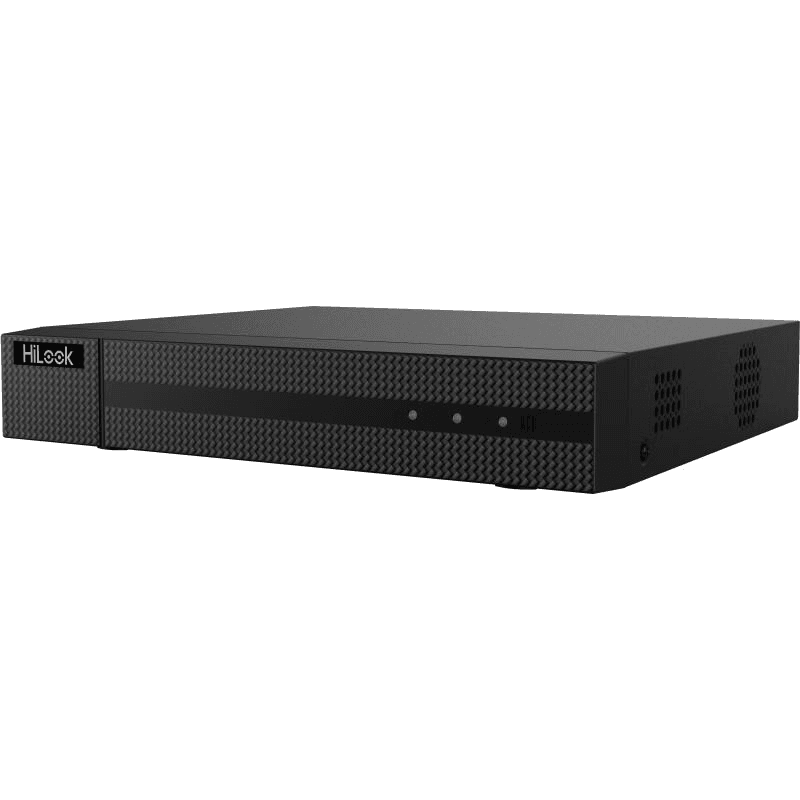

The HiLook 8-ch Mini 1U 8 PoE NVR (NVR-108MH-D/8P) records up to 8 IP cameras and powers them from its own ports. An NVR is a network video recorder: it stores footage from IP cameras on a hard drive. PoE (Power over Ethernet) carries power and data down one network cable, so each camera needs a single cable run.
What the specs mean in practice
- 8 PoE ports, IEEE 802.3af and 802.3at. Compatible cameras plug straight into the recorder, with no separate PoE switch.
- Recording up to 6MP. Each of the 8 channels accepts cameras up to 6 megapixels.
- H.265+/H.265/H.264+/H.264 compression. These codecs shrink video files. H.265+ cuts storage use further while keeping image quality.
- 60 Mbps incoming and 60 Mbps outgoing bandwidth. This is the network capacity for recording and remote access.
- Playback of 4 channels at 1080p, or 2 channels at 4MP. Useful when reviewing several cameras together.
- HDMI and VGA output at the same time, up to 1920 × 1080. Connect two displays at once.
What else you need
- A SATA hard drive. There is one SATA interface, supporting up to 6TB.
- PoE-capable IP cameras at 6MP or below per channel.
- A monitor with an HDMI or VGA input for local viewing.
Remote viewing works through HiLookVision software, a web browser or a mobile app. The rear panel has the 8 PoE ports, LAN, HDMI, VGA, USB ports and power input.
Specifications
- IP Video Input
- 8-ch Up to 6 MP resolution
- Decoding Format
- H.265+/H.265/ H.264+/H.264
- Recording Resolution
- 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Stream Type
- Video, Video & Audio
- Network Protocol
- TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
- POE Interface
- 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power
- ≤ 75 W
- Capacity
- Up to 6 TB capacity for each disk
- Power Supply
- 48 VDC, 1.8 A
- Consumption
- ≤ 10 W (without HDD and PoE off)
- Dimension (W × D × H)
- 265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
Technical Specifications
Frequently Asked Questions
Do I need a PoE switch with the NVR-108MH-D/8P?
No. It has 8 built-in PoE ports supporting IEEE 802.3af and 802.3at, so compatible IP cameras connect directly to the recorder.
What is the largest hard drive it takes?
It has one SATA interface that supports a drive up to 6TB.
What is the maximum camera resolution it records?
It records up to 6MP, across up to 8 IP camera channels.
Can I connect two monitors?
Yes. HDMI and VGA outputs work at the same time, up to 1920 × 1080.
