Longse NVR3109S1P8 9CH 4K PoE NVR Recorder 8 Port PoE H.265+ Up to 8TB CCTV

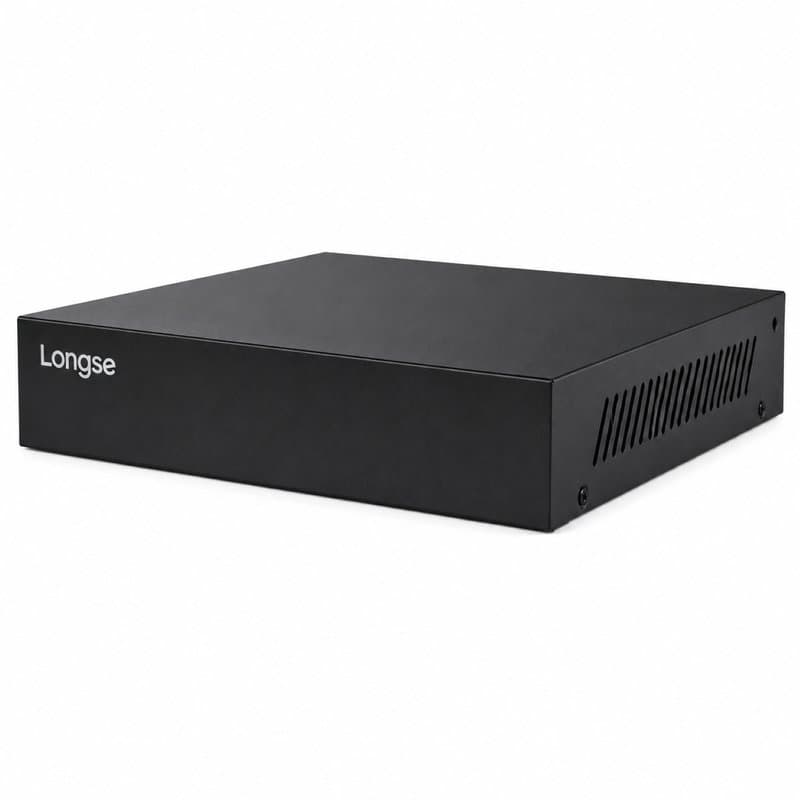

The Longse NVR3109S1P8 9CH 4K PoE NVR Recorder 8 Port PoE H.265+ Up to 8TB CCTV (SKU NVR3016E1P8) is a network video recorder with power sockets for IP cameras built in. PoE (Power over Ethernet) means one network cable carries both power and data to each camera.

What the specs mean in practice

• 9 channels, 4K: up to nine camera channels, with 4K recording.
• 8 PoE ports: each is an independent 100Mbps port, so eight cameras can plug straight into the recorder. No separate PoE switch is needed for those eight.
• H.265+: a video compression format that reduces the storage each recording uses.
• Up to 8TB: the largest drive capacity listed. You supply the hard drive.
• Plug and play detection: the recorder detects cameras connected to its PoE ports.

Power and cable runs

Each port supplies 30W in AT mode or 15W in AF mode. AT and AF are the two PoE power classes. The total PoE budget is 45W, shared across all ports. Add up your cameras' power draw before connecting all eight.

Extended cable mode supports runs of up to 200m. The line order is 45/78.

What else you need

• IP cameras that accept PoE.
• A hard drive, up to 8TB.
• A monitor and network cabling to suit your layout.
