Product Description

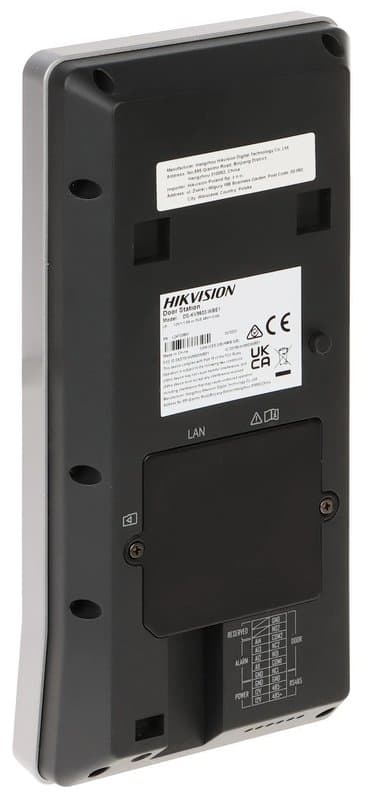

The Hikvision Metal Vandal-resistant Facial Recognition IP Villa Door Station (DS-KV9503-WBE1) is a single outdoor unit that handles visitor calls and entry control at a villa door, gate or building access point.
What you get
- Two 2 MP cameras with infrared (IR) supplement. Visitors and faces are captured in daylight and in low light.
- 4.3-inch colour LCD, 800 × 480. Shows call and access feedback at the door.
- One physical call button. One press rings the resident.
- Five ways to authenticate: face, PIN code, card, QR code and Bluetooth.
- Metal housing rated IK08 and IP65. IK08 is an impact rating. IP65 covers dust and water jets.
What else you need
The unit uses Power over Ethernet (PoE), so it needs a PoE switch or injector port and a network cable run to the door. No separate power supply is listed.
Residents can answer calls in the Hik-Connect app without an indoor station. If you want a screen inside the property, that is a separate purchase.
Where it fits
Suited to residential and small commercial entrances where one unit must cover calling, camera view and several entry methods.
Specifications
- Operating System
- Linux
- Screen Size
- 4.3-inch
- Operation Method
- Capacitive touch screen
- Max Resolution
- 800 × 480
- Luminance
- 425 cd/m²
- Wide Dynamic Range (WDR)
- Support 120 dB
- Supplement Light
- IR light, up to 3 m
- Audio Input
- 1 built-in omnidirectional microphone
- Audio Compression
- G.711u,G.711a,Opus,AAC-LD,AAC-LC,G.726,G.722.1
- Audio Output
- 1 built-in loudspeaker
- Audio Compression Bitrate
- G.711u,G.711a,Opus:64kbps;G.722.1,G.726:32kbps;AAC-LD,AAC-LC:16kbps
- Audio Quality
- Noise suppression and echo cancellation
- Volume Adjustment
- Adjustable
- User Capacity
- 20000
- Face Capacity
- 10000
- Card Capacity
- 100000
- Linked Indoor Station Capacity
- 500
- Network Protocol
- TCP/IP, RTSP
- Wi-Fi
- IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth
- Support:2.0
- Card Reading Frequency
- 13.56 MHz
- Face Recognition Distance
- 0.3 to 2 m
- Face Recognition Accuracy Rate
- ≥ 99%
- Alarm Input
- 4 (2 exit butttons and 2 door contacts by default)
- Network Interface
- 1 RJ-45, 10/100 Mbps self-adaptive
Technical Specifications
Frequently Asked Questions
Do I need an indoor station with the DS-KV9503-WBE1?
No. It can call the Hik-Connect app directly, so residents can answer and manage door access from a phone.
How is the DS-KV9503-WBE1 powered?
It runs from a PoE (Power over Ethernet) supply, so it needs a PoE switch or injector and a network cable.
Which entry methods does it support?
Face, PIN code, card, QR code and Bluetooth.
What protection ratings does it have?
IK08 for impact and IP65, in a metal housing. It is suited to outdoor installation.
