Product Description

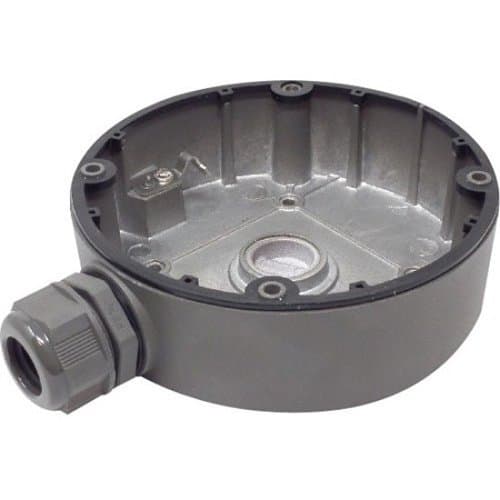

The Hikvision DS-1280ZJ-TR13-G Aluminum Junction Box for Turret Cameras Grey is a mounting base and cable housing for turret cameras. It sits between the wall or ceiling and the camera, so cable joints are not left exposed.
Key facts
- Size: approximately Ø110 mm × 48 mm. That is about 11 cm across and under 5 cm deep.
- Material: aluminium alloy body.
- Finish: grey, to match Hikvision camera housings.
- Where: indoor and outdoor installations, on walls or ceilings.
- Cameras: selected Hikvision turret models, not every camera in the range.
What it does for the installation
Network and power connections are concealed inside the housing. The connectors are shielded from environmental exposure, and the cable run stays out of sight. The 48 mm depth gives room for network connectors and cable joints, which helps where space behind the camera is tight.
What else you need
The junction box is only the housing. The camera, network cable and power supply are separate, and they should be chosen to suit your recorder and the camera you are fitting.
It is used in residential, commercial and industrial closed-circuit television (CCTV) systems.
Specifications
- Brand
- Hikvision
- Colour
- Grey
- Weight
- Approx. 187 g (0.41 lb.)
- Appearance
- Hikvision White
- Material
- Aluminium Alloy
- Dimensions
- Φ 110 mm × 144.3 mm × 48 mm (Φ 4.33" × 5.68" × 1.89")
- Description
- Junction Box
Technical Specifications
Frequently Asked Questions
What size is the DS-1280ZJ-TR13-G junction box?
It measures approximately Ø110 mm × 48 mm, so about 11 cm across and 4.8 cm deep.
Can it be used outdoors?
Yes. It is suitable for both indoor and outdoor installations, and its body is aluminium alloy.
Does it fit every Hikvision turret camera?
No. It is compatible with selected Hikvision turret cameras, so match it to your camera model before ordering.
What is it used for?
It gives a turret camera a mounting base and conceals network and power connections inside the housing, protecting the connectors.
