Product Description

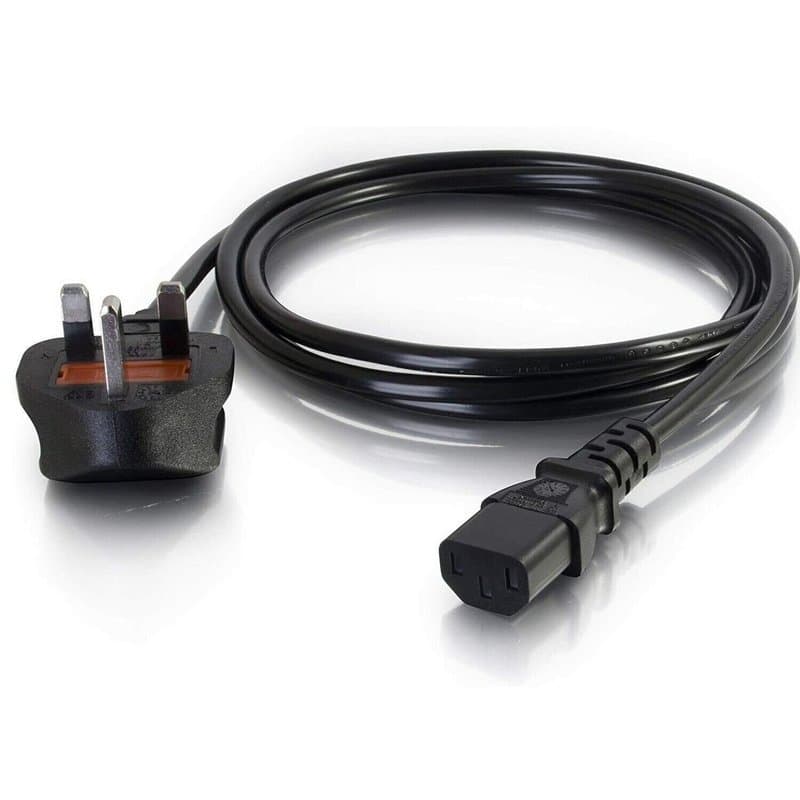

A UK mains lead that connects a fused BS1363 plug to an IEC C13 female connector — the socket found on most rack PSUs, NVRs, DVRs and monitor power bricks.
Cable: H05VV-F 3-core, 3x0.75mm², PVC insulated, rated 10A at 250VAC. That covers typical rack loads such as NVR power supplies, PoE switches and monitor PSUs drawing well under the rated current.
Length: 1.2m — sized for a PDU-to-equipment run inside a rack, or a short hop from a nearby wall socket to a rack unit, without leaving excess slack to manage.
Connector choice: straight or right-angle C13. Right-angle suits a shallow rack PSU where there's little clearance behind the unit; straight suits equipment with front-panel IEC inlets.
Key specs
- Plug: non-rewireable BS1363, fused (3A/5A/10A variants)
- Socket end: IEC C13 female
- Cable: H05VV-F 3x0.75mm² PVC, 10A @ 250VAC
- Length: 1.2m
- Build: SVTR/VDE approved, moulded strain relief
- Operating range: -10°C to 70°C
- Finish: black PVC sheath
The moulded strain relief is built to take rack door flexing and repeated plugging in and out during maintenance. It mates with any equipment fitted with a standard IEC C14 inlet — check your NVR, switch or monitor PSU has this before ordering.
Specifications
- Product Type
- IEC C13 Kettle Lead
- Plug Type
- UK BS1363 3-pin fused
- Connector Type
- IEC C13 Female
- Cable Length
- 1.2
- Cable Standard
- H05VV-F
- Conductor Size
- 3x0.75 mm²
- Voltage Rating
- 250 VAC
- Current Rating
- 10
- Fuse Rating
- 5A / 10A / 13A
- Jacket Material
- PVC
- Approval Standards
- SVTR / VDE / BS1363
- Operating Temp
- -10°C to 70°C
- Colour
- Black
Frequently Asked Questions
What fuse does the plug have?
It's a non-rewireable BS1363 plug available in 3A, 5A or 10A fuse variants.
Will this fit my NVR or switch?
If the equipment has a standard IEC C14 inlet, this C13 lead will mate with it.
Is the right-angle or straight connector better for my rack?
Right-angle suits shallow rack PSUs with limited clearance behind the unit; straight suits front-panel access.
What is the highest load this cable is rated to carry?
The H05VV-F 3x0.75mm² cable is rated 10A at 250VAC.
