Product Description

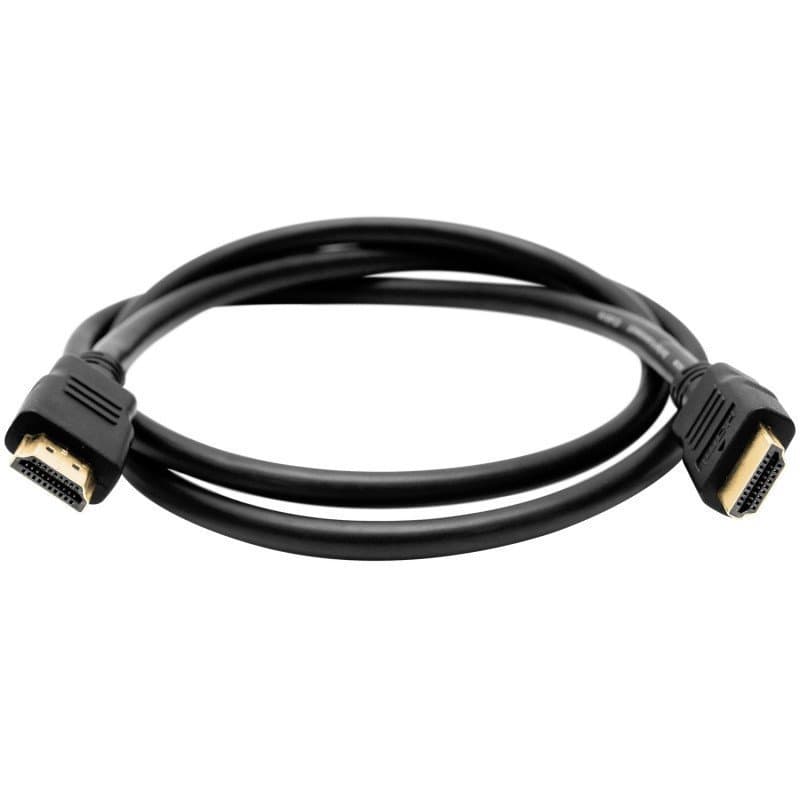

The Heavy Duty 5m 4K HDMI 2.0 Cable - High-Speed Lead for Smart HD 3D TV (SKU HDMI-CABLE-5M) is a Type A male-to-male HDMI lead. It links an NVR (network video recorder) or DVR HDMI output to a monitor or projector up to 5m away.
What the specs mean on screen
- High Speed HDMI 1.4b certified, 10.2Gbps bandwidth: 4K at 30Hz (3840x2160) or 1080p at 60Hz, with multi-channel audio.
- ARC, CEC and Ethernet channel: ARC (audio return channel) sends audio back to a receiver. CEC (consumer electronics control) can pass power commands between screens.
- HDCP 1.4: suits content protected with HDCP (high-bandwidth digital content protection).
- Backward compatible with HDMI 1.3.
Build
- Oxygen-free copper conductors, 24-26AWG.
- Foil-plus-braid double shielding against EMI (electromagnetic interference) from nearby PSUs, PoE injectors and Cat6 patch panels.

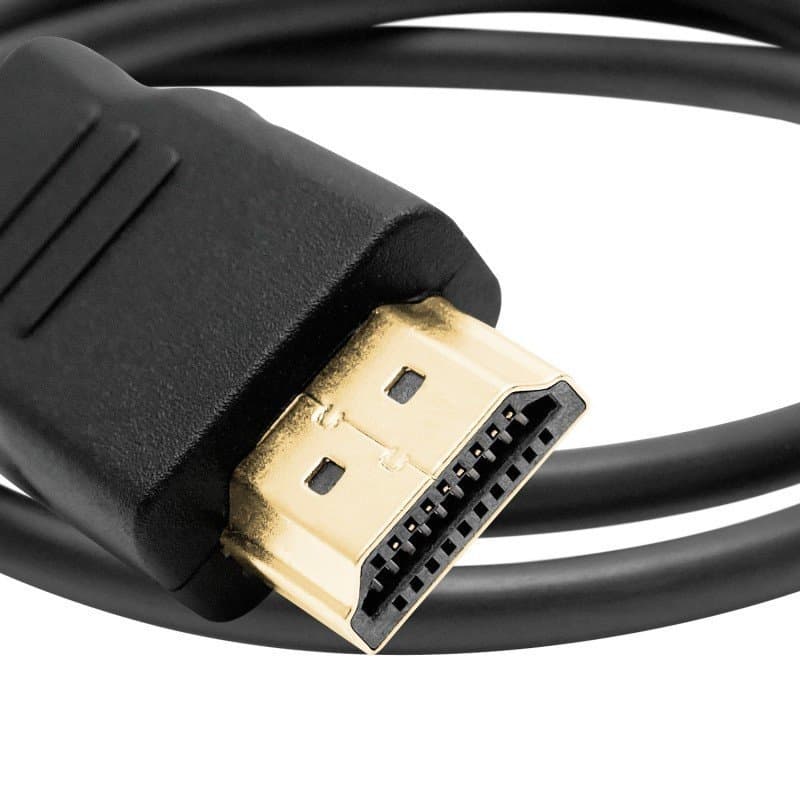

- Nickel/gold-plated contacts.
- PVC jacket, 7-8mm outer diameter.
- Moulded strain relief at the connectors, for repeated reconnection in a rack.
What else you need
Both the recorder and the display must have HDMI ports. Check the recorder's maximum output resolution first: the cable carries 4K at 30Hz, but the picture is limited by what the recorder and screen support. It has been used between Hikvision and Dahua recorders and local displays for live multi-camera viewing.
Specifications
- Length
- 5m
- Connector Type
- HDMI
Technical Specifications
Frequently Asked Questions
Does this cable carry 4K at 60Hz?
No. It is High Speed HDMI 1.4b certified with 10.2Gbps bandwidth, which supports 4K at 30Hz and 1080p at 60Hz.
What connectors does it have?
HDMI Type A male at both ends, so it suits an HDMI output on an NVR or DVR going to an HDMI input on a monitor or projector.
Is it shielded against interference?
Yes. It has double shielding (foil plus braid) and oxygen-free copper conductors, intended for runs near CCTV PSUs and Cat6 patch panels.
