Product Description

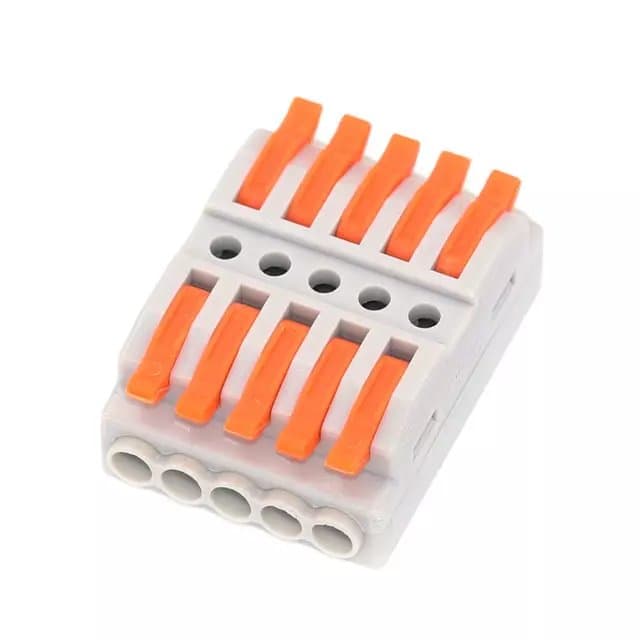

The SPL-5 Lever Wire Connector 5 Port Terminal Block for CCTV Power (SKU SPL-5-5-GREY) lets you join and split low-voltage conductors in one small block. Here is what each spec means on a job.
Specs, and what they give you
- 5 independent ports: one block can take a supply cable and several outgoing cables, for example a feed from a power supply unit (PSU) and runs to separate cameras.
- 12V DC and 24V DC: it suits CCTV power at either voltage. Check that your PSU output is one of these two.
- Lever clamp: lift the lever, insert the conductor, close it. You do not need a screwdriver or crimp tool for the connection.
- Solid and stranded copper conductors: it accepts CCTV power cable, alarm cable and control wiring. Check that your cable has copper conductors.
- Compact insulated housing: it is sized for junction boxes, camera enclosures, camera back boxes and network cabinets.
What else you need
The connector only joins conductors. You still need a PSU at the correct voltage, the cable for each run, and an enclosure to house the block.
Beyond CCTV power supplies, the same lever clamp method applies to alarm systems and LED drivers.
Specifications
- Voltage
- 12V
- Colour
- Grey
Technical Specifications
Frequently Asked Questions
Which voltages is the SPL-5 suitable for?
It is suitable for 12V DC and 24V DC CCTV power installations.
Do I need special tools to connect cables?
No. The lever clamp is tool-free, so you do not need screw terminals or crimping tools.
Can I use stranded cable?
Yes. It is compatible with both solid and stranded copper conductors.
Can I use it for anything other than CCTV power?
Yes. It is also suited to alarm systems and LED drivers.
