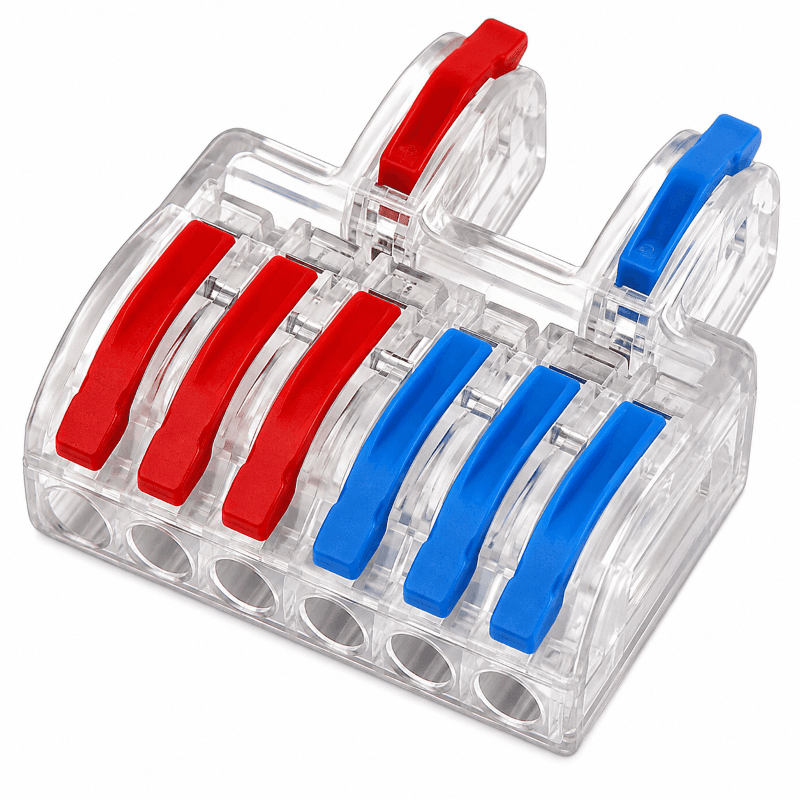

SPL-2-6-CL Clear Lever Wire Connector 2 In 6 Out Splicing Terminal

The SPL-2-6-CL is a lever-clamp connector for splitting one CCTV power feed into six connection points. It has two input ports and six output ports, arranged across dedicated positive and negative channels.

What the ports mean

• 2 in, 6 out: one power run enters, six separate leads can be terminated from it — useful where several cameras share a single power supply.
• Dual channel design: positive and negative conductors are kept in separate terminal rows, so polarity stays organised at a glance.
• 12V DC and 24V DC: the connector is suitable for both voltages commonly used in CCTV power distribution.

Termination

Connection is by tool-free lever clamp — conductors push in and the lever locks them, with no screw terminals or crimping tool needed. It accepts both solid and stranded copper conductors, covering most CCTV power and alarm cable types.

Housing

The body is transparent, so each conductor can be checked visually once inserted — helpful for confirming a secure connection before closing up a junction box or enclosure.

Where it's used

This is a junction-box or cabinet-level component, not a standalone product — it sits inline on a power run to split it into multiple camera feeds, keeping positive and negative wiring separated and traceable.
