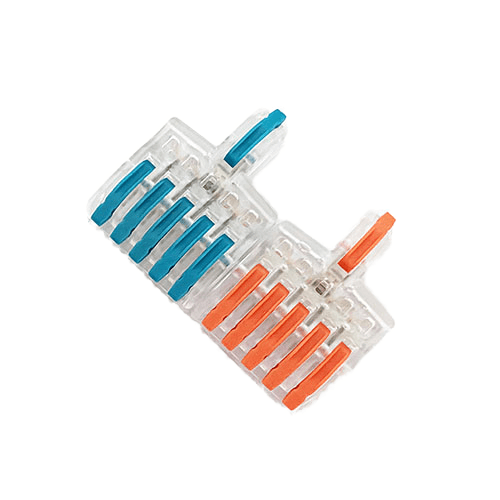

2 In 6 Out Lever Wire Connector Transparent CCTV Power Splitter Block

The SPL-2-10-2-CL is a lever-clamp connector block that splits a single 12V DC or 24V DC power feed into six outputs. It's built for CCTV installs where one PSU (power supply unit) needs to feed several cameras from one junction point.

Key specs

• 2 input terminals, 6 output terminals
• 12V DC and 24V DC compatible
• Lever clamp termination — push conductors in and lock the lever, no crimping tool or screwdriver needed
• Colour-coded channels separate positive and negative runs, so polarity stays correct across all six outputs
• Transparent housing lets you check each conductor is seated and clamped before closing the enclosure
• Accepts solid and stranded copper conductors — covers most CCTV power cable and alarm wiring types

Where it fits

This block belongs inside a CCTV power distribution box, camera junction box, or structured cabling enclosure — anywhere a single feed needs to branch to multiple camera drops. With six outputs, one block can serve up to six cameras from one PSU output; if you're running more cameras than that, you'll need a second block or a PSU with more outputs.

Installation notes

Strip the conductor to the length the lever mechanism expects, insert it fully, then close the lever to clamp it. The transparent body means you can confirm a good connection by eye rather than tugging on the wire to check.
