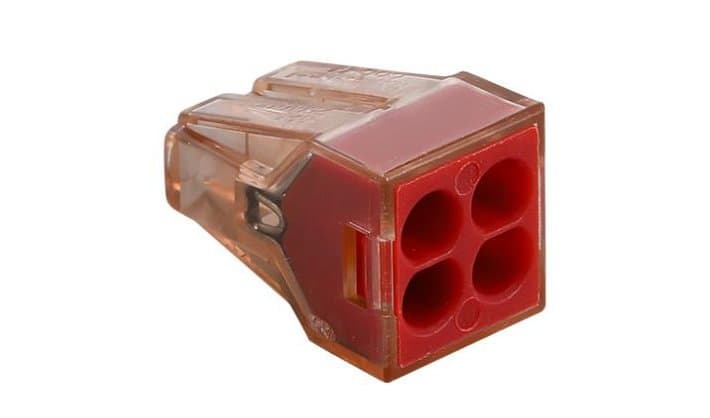

PCT-104 Push Wire Connector 4 Port Inline Terminal Block 1.5–4mm²

Four conductors, one joint, no screwdriver. That is what the Push Wire Connector 4 Port Inline Terminal Block, PCT-104 (MPN PCT-604) does inside a junction box or enclosure.

What each spec means for you

• 4 ports: four independent connections, so one connector can join or split up to four conductors.
• 1.5mm² to 4mm²: solid or stranded copper. The figure is conductor cross-section in square millimetres, so check the cable's stated size before you buy.
• Push-in spring clamp: you push the conductor into the port. No screws and no crimping tool are involved.
• Rated up to 250V: suitable for low-voltage and mains wiring applications, including CCTV (closed-circuit television) power runs, lighting circuits and control wiring.
• Transparent housing: you can see whether each conductor has gone in, before the box is closed.
• Compact inline design: it takes little room in a CCTV junction box, rack cabinet or electrical enclosure.

What else you need

Copper cable that falls within 1.5mm² to 4mm². A joint with more than four conductors needs more than one connector, because each connector has four ports.

This is a plain connector. It joins conductors but does not supply power, so the power supply and cable for your cameras are separate items.
