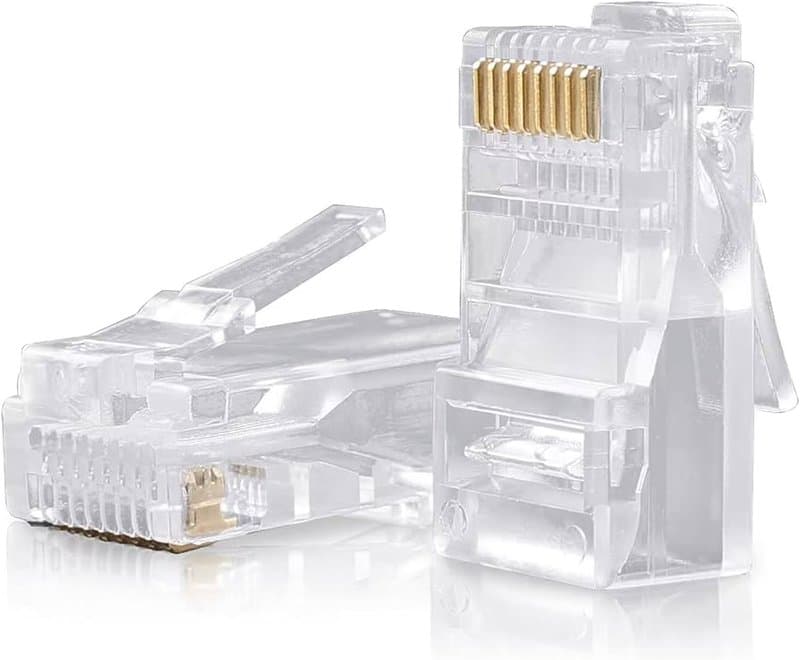

CAT6 RJ-45 8P8C Modular Plug

A crimp-on CAT6 8P8C plug for terminating patch leads and camera runs on site. Sold in packs of 25.

What the specs mean on site

• Non-keyed design: terminates with a standard crimper, so no proprietary tool is needed alongside your existing kit.
• 3-piece construction (sled, liner, main body) with 3 prong contacts per wire: gives a firm mechanical grip on each conductor during crimping.
• 50µ gold-plated contacts: reduces wear on the contact points over repeated connect cycles.
• 250MHz application compatibility: matches CAT6 cable requirements for the termination.
• 24 or 23 AWG solid/stranded conductor fit: covers both common cable types used on installs.
• Primary and strain reliefs: hold the cable jacket in place so the termination isn't left carrying mechanical load.
• Non-feed-thru, closed end face: conductors are trimmed flush before crimping rather than fed through the plug.

Where it's used

Field-terminating a CCTV camera drop or a patch lead where a factory-made lead won't reach or fit. One pack of 25 covers a run of terminations across a job without reordering mid-install.

Compatibility note

Built for CAT6 cable with standard 24/23 AWG solid or stranded conductors. Check your cable's conductor gauge before crimping, as the plug is designed around that fit.
