Product Description

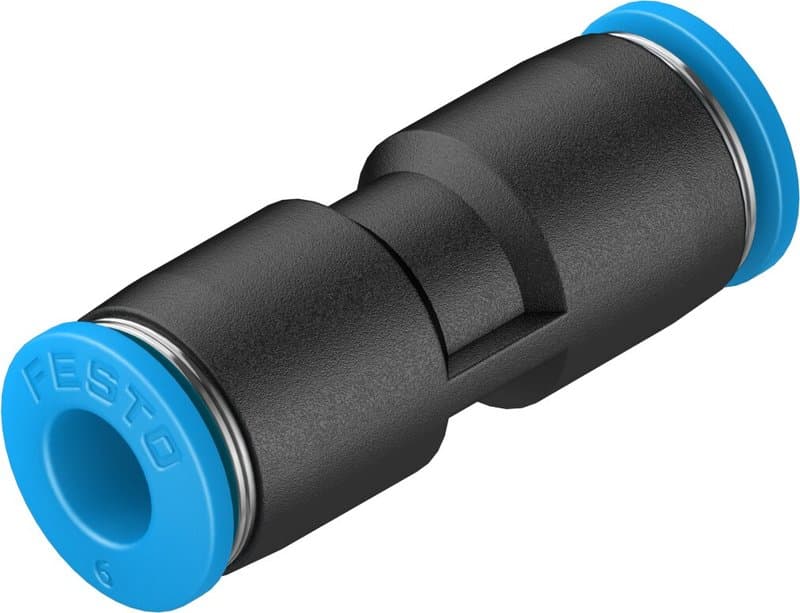

Push-in connector Straight (SKU FESTO-QS-6) joins two lengths of pneumatic tube end to end. Both sides take 6mm outside diameter tube, so one fitting makes one in-line joint with no change of direction or size.
What each spec means in use
- Push-pull connection: tube is pushed in to fit and released to remove. A run can be re-made during maintenance without replacing the fitting.
- Blue release rings: these are the parts you use to disconnect a tube.
- PBT housing: PBT (polybutylene terephthalate) is a plastic, which keeps the body light.
- NBR seals: NBR (nitrile butadiene rubber) is the sealing material inside the fitting.
- Stainless-steel gripping components: these hold the tube once it is pushed in.
- Compact design: suits installations where space is limited.
What you need alongside it
You need 6mm outside-diameter tube for each end. Measure the outside of the tube, not the bore.
The Festo QS-6 is intended for compressed-air installations, automation equipment and maintenance work. It is a fitting for pneumatic tube, not a cable or wiring connector, so it has no place in a CCTV power or video run.
Specifications
- Product Type
- Straight push-in tube connector
- Brand / Model
- Festo QS-6
- Part Number
- 153032
- Tube Connections
- 6mm outside diameter at both ends
- Nominal Bore
- 4.3mm
- Tube Insertion Depth
- 17mm
- Operating Pressure
- −0.95 to 6 bar across the full temperature range
- Temperature-Dependent Pressure
- Up to 14 bar, subject to temperature
Technical Specifications
Frequently Asked Questions
What tube does the Festo QS-6 fit?
Pneumatic tube with a 6mm outside diameter, on both ends of the fitting.
How is the tube released?
The push-pull connection system uses blue release rings, which make disconnection straightforward.
What are the materials?
The housing is PBT, the seals are NBR and the tube gripping components are stainless steel.
Can it join two different tube sizes?
No. It is a straight connector for two 6mm outside-diameter tubes.
