Product Description

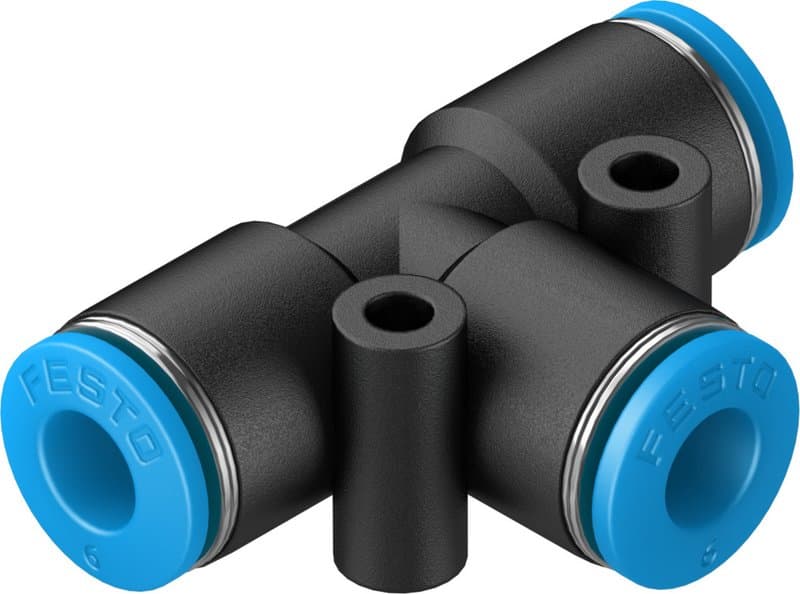

The Festo QST-6-100 Push-In T-Connector for 6 mm Tube joins three pneumatic tubes, each with a 6 mm outside diameter, at one point.
What it does
One compressed-air supply tube goes into the connector. Two tubes leave it. That gives you a branch without a separate manifold, which suits pneumatic installations and automation equipment.
How the connections work
- Push-in ports: push the tube in to fit it.
- Blue release rings: press the ring to free the tube for removal.
- Stainless-steel gripping components: these hold the tube in place once it is fitted.
- NBR seals: NBR is nitrile butadiene rubber, a common seal material in air systems.
- PBT housing: PBT is polybutylene terephthalate, a plastic. It keeps the body light.
Before you order
All three ports take 6 mm outside diameter tube. Measure the outside of your tubing, not the bore. Tube of another outside diameter will not suit this connector.
The model code is QST-6-100, where the 6 refers to the tube size.
Specifications
- Brand / Model
- Festo QST-6-100
- Part Number
- 130803
- Product Type
- Push-in T-connector
- Tube Connections
- 3 × 6mm outside diameter
- Configuration
- 1 supply line, 2 outlets
- Nominal Bore
- 4.8mm
- Tube Insertion Depth
- 17mm
- Operating Pressure
- −0.95 to 6 bar across the full temperature range
Technical Specifications
Frequently Asked Questions
What tube size does the Festo QST-6-100 take?
All three push-in ports take pneumatic tube with a 6 mm outside diameter.
How do I remove a tube from this T-connector?
Use the blue release ring on the port. Pressing it frees the tube for removal.
What is the housing made from?
The housing is PBT (polybutylene terephthalate), with NBR seals and stainless-steel gripping components.
What is the QST-6-100 used for?
It splits one compressed-air supply into two lines. It suits pneumatic installations and automation equipment.
